Vacuum-Toilet

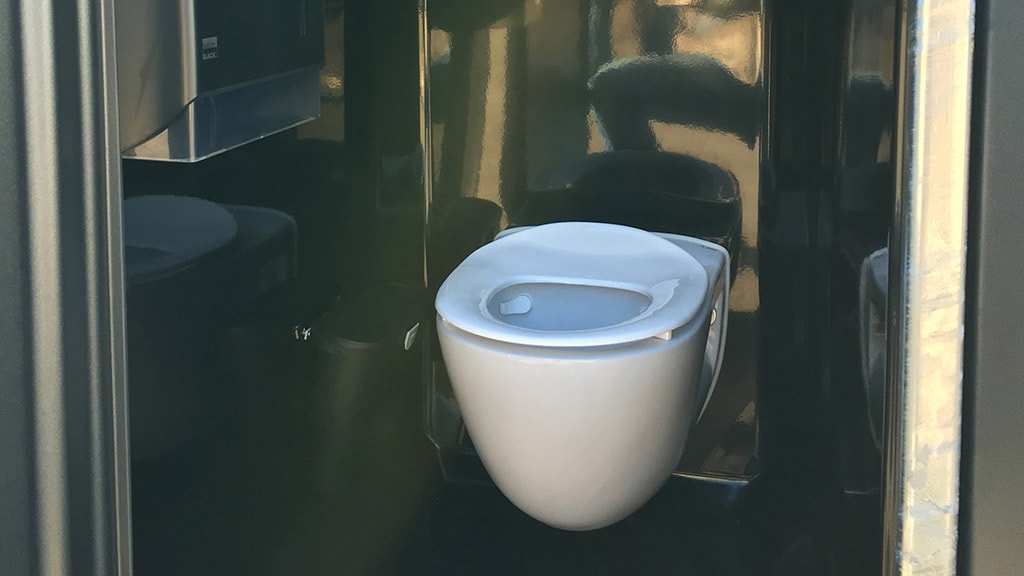

One of the most sustainable mobile toilet systems on the market today, this three-stall module comes equipped with toilets that rely on a proven vacuum flush design powered by Jets™ technology. This technology saves up to 90% of the water used by conventional gravity flushing toilets (0.25 gallon vs. two gallons), while retaining full user comfort.

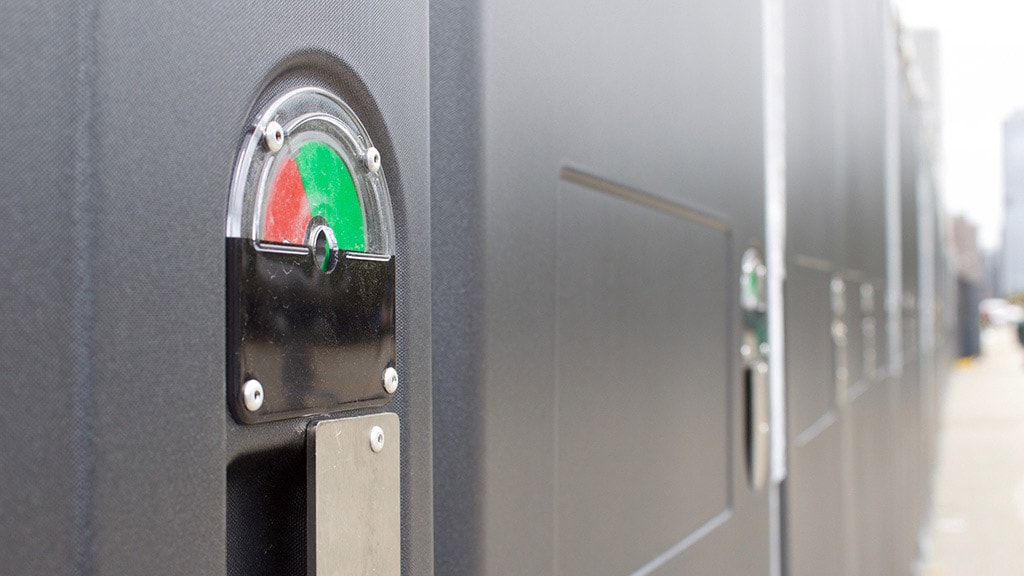

The luxurious modern modules have designer doors, which are shaped ergonomically and functionally so that sunlight enters the stall while allowing for optimum ventilation. Extremely smooth interior walls, no sharp 90° corners, and seamless flooring prevents dirt and waste from collecting and makes the module the easiest to clean portable toilet and shower system available on the market today. Both the interior and exterior are quickly and conveniently cleaned with a common household pressure washer.

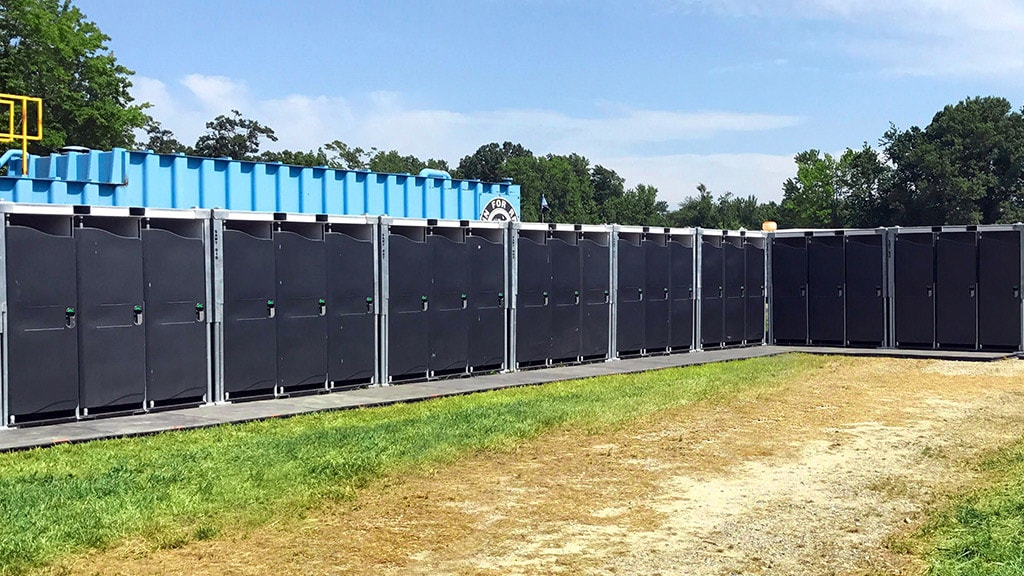

The collapsible design provide easy, safe, and economical transport. Every four foot section of truckbed accommodates two modules, with six individual toilets per four feet. This enables a 53’ trailer to load 22 modules for a total of 66 toilet seats.

The drainage system is a closed system all the way from the toilet bowl through the Jets™ vacuum pump that powers the system into a sewage connection or temporary holding tank. The vacuum system inducts fresh air into each stall with every flush, resulting in a virtually odorless experience and the most hygienic operation available. Operators also have more freedom to place modules than normal gravity urinals. In fact, the sewage lines and toilet modules can be placed on slightly uneven surfaces.

This allows event organizers to provide dependable, high-end, high volume sanitation facilities to their visitors, each and every time.

  • High-end sustainable toilets for high capacity needs
  • Designed for fast and easy cleaning
  • Strong and sustainable design
  • Simple, safe, economic transport and loading

We Provide a Breadth of Equipment for Your Deployment Needs

Specifications | Vacuum-Toilet

Key Features:
Main module of a complete modular solution: toilets, urinals, sinks, and showers Proven vacuum technology by Jets™ Flexible on-site placement possibilities 90% reduction on water usage and wastewater output compared to regular toilets Hygienic “one form” corner-free interior design No dangerous steps to get in the stall Power-saving LED lights
Dimensions
255 x 120 x 145 cm (folded) 235 cm (in use) 8.37 x 3.94 x 4.76 ft (folded) 7.71 ft (in use)
Frame
Galvanized steel
Interior
Fiberglass
Weight
1650 lbs
Toilets
Vacuum flushing
Power
12V
Standard
Waste bin, toilet roll holder, clothes hook, LED light
Installation Tools
Not Needed
Download Spec Sheet

Specifications may vary. Contact Deployed Resources for more information.
